The Micro Traxion is a compact and lightweight progress-capture pulley designed for crevasse rescue, hauling, and self-rescue, and for use as an emergency ascender. The cam can be locked in the open position so the device can be used as a simple pulley. Sealed ball bearings provide excellent efficiency (91 %), while the device will perform even on frozen or muddy ropes.
Specs
- High-efficiency, lightweight, and ultra-compact progress capture pulley (volume and weight 50 % smaller than the Mini Traxion)
- Designed for crevasse rescue, hauling, self-rescue, and for use as an emergency ascender
- 91% efficiency thanks to sealed ball bearings

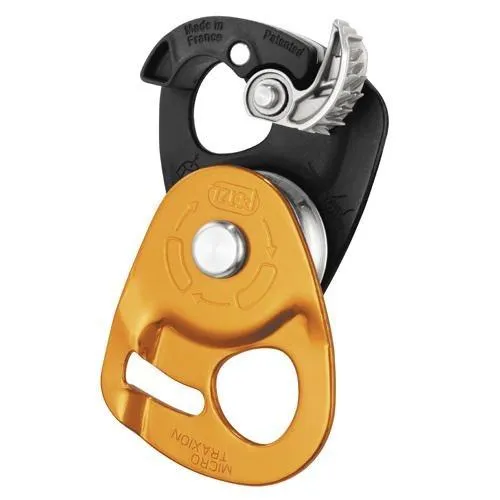

- Cam can be locked in open position so device can be used as a simple pulley
- Works on frozen or muddy ropes
- For use on ropes between 8mm and 11mm in diameter

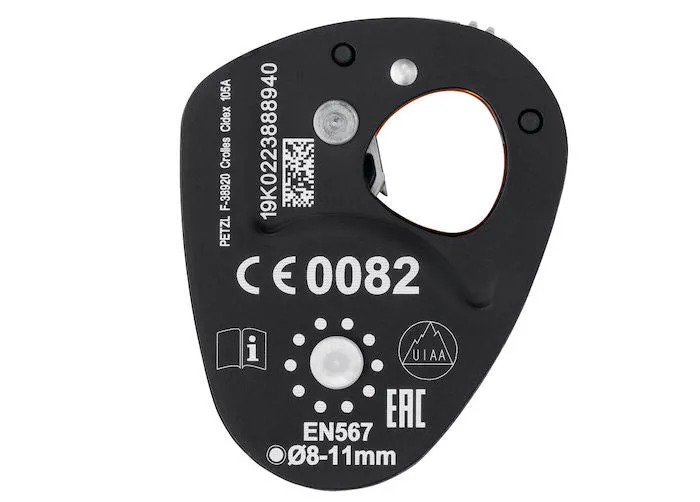

- Diagrams for rope installation engraved on interior of pulley
| Sheave Type | Sealed Ball Bearings |
| Sheave Diameter | 25 mm |
| Working Load | 2.5 kN x 2 = 5 kN |
| Working Load - Progress Capture Pulley | 2.5 kN |
| Breaking Strength | 7.5 kN x 2 = 15 kN |
| Breaking Strength - Progress Capture Pulley | 4 kN |
| Weight | 85 g / 2.99 oz |
