High-efficiency lightweight progress-capture pulley

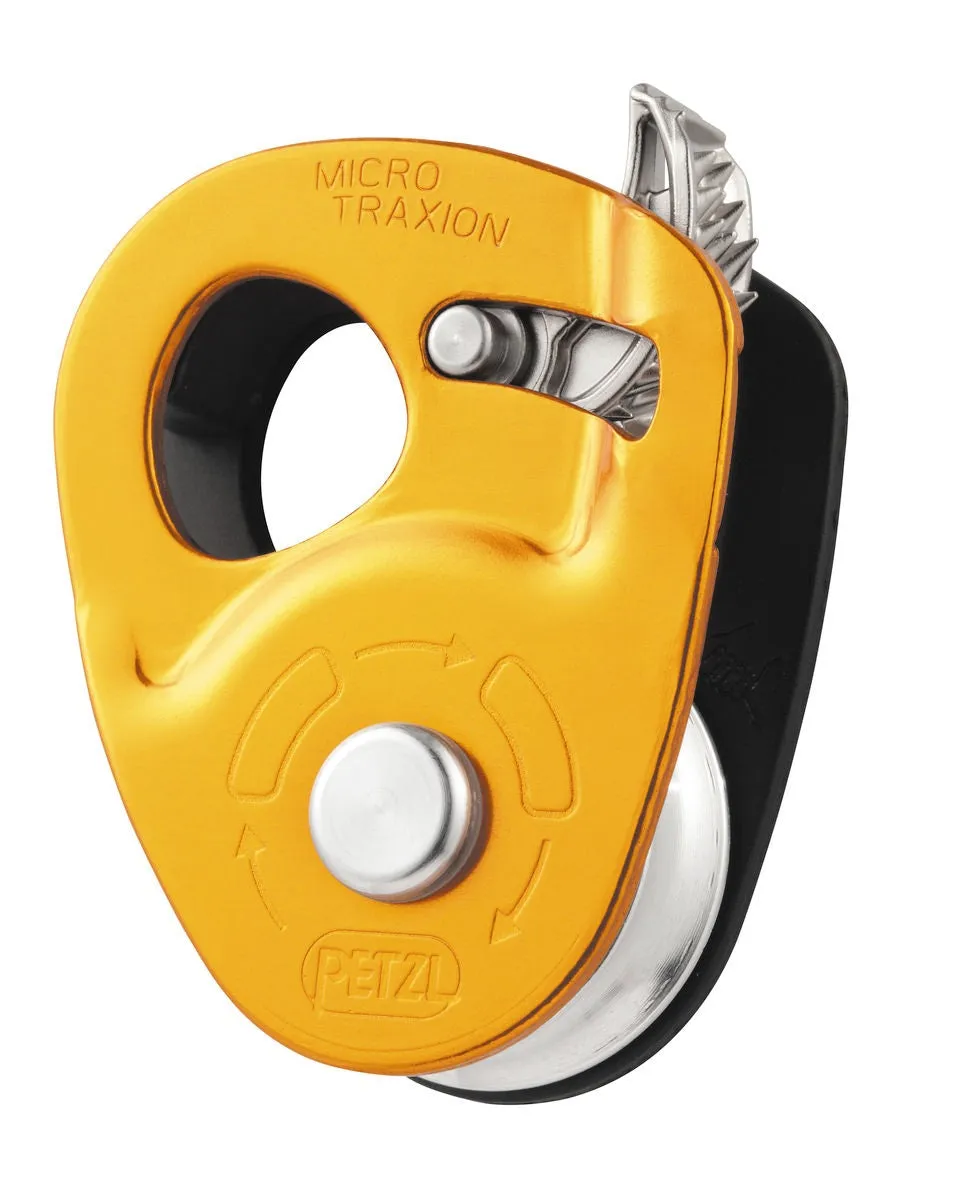

MICRO TRAXION is a compact and lightweight progress-capture pulley (85 g) designed for crevasse rescue, hauling, and self-rescue, and for use as an emergency ascender. The cam can be locked in the open position so the device can be used as a simple pulley. Sealed ball bearings provide excellent efficiency (91 %).
Tech Specs
- Weight: 85 g
- Certification(s): CE EN 567, UIAA
- Min. rope diameter: 8 mm
- Max. rope diameter: 11 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 25 mm
- Working load: 2 x 2.5 = 5 kN
- Breaking strength: 2 x 7,5 = 15 kN
- Working load as progress capture pulley: 2.5 kN
- Breaking strength as progress capture pulley: 4 kN
- Efficiency: 91 %
- Guarantee: 3 years
- Ultra-light and ultra-compact progress capture pulley (volume and weight 50 % less than the MINI TRAXION)
- Sealed ball bearings provide excellent efficiency (91 %)
- Cam can be locked in open position so device can be used as a simple pulley. Works even on frozen or muddy ropes.
- For use on 8 - 11 mm diameter ropes
- Rope installation diagrams engraved inside pulley
- Designed for crevasse rescue, hauling, self-rescue and as an emergency ascender
