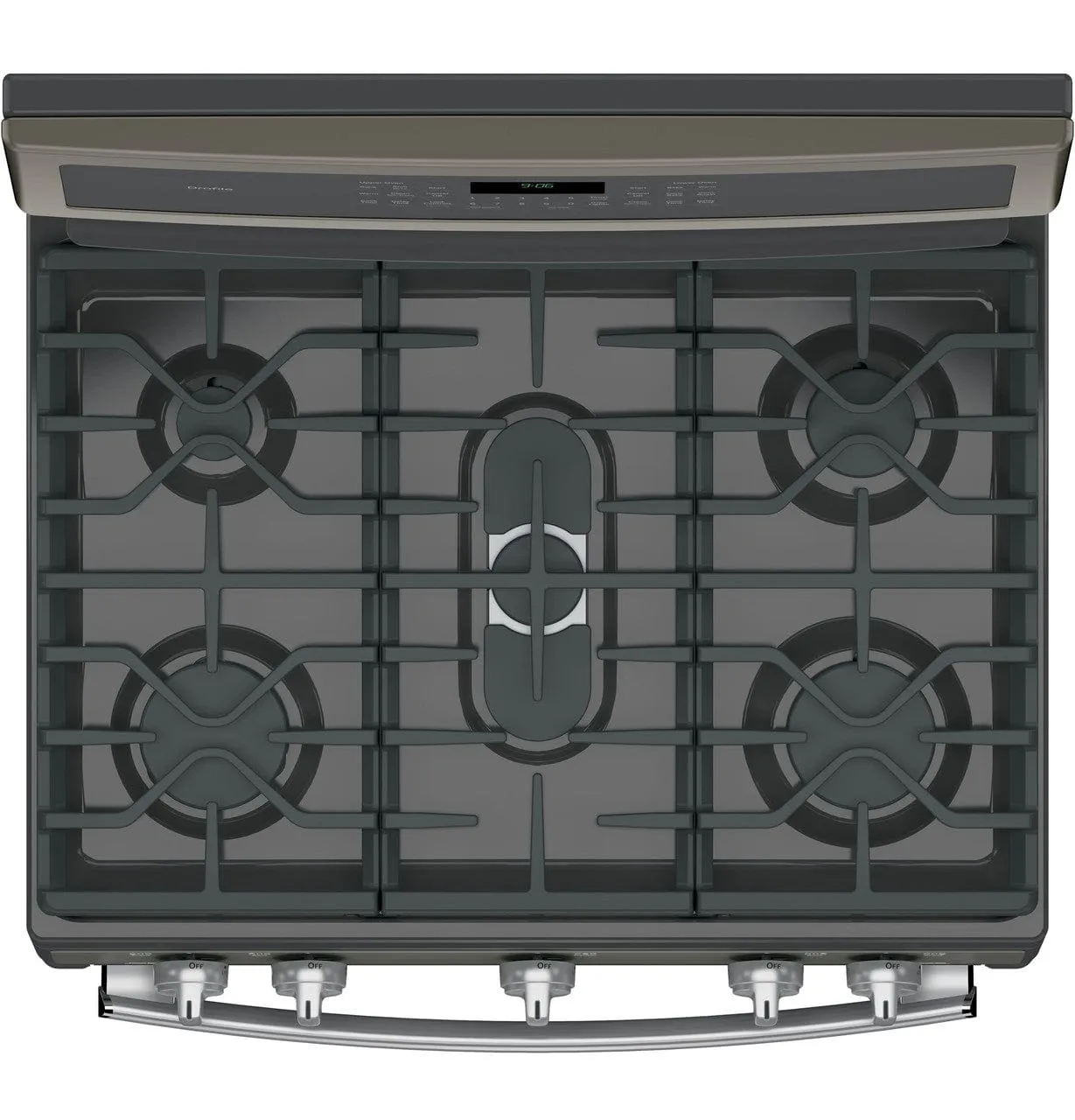

Cook with anything from grills and griddles to oversized pots with the industry’s first combination oval/round burner
Dimensions: 47 1/4 H x 30 W x 29 1/4 D
ACCESSORIES
| Center Grate | Included |

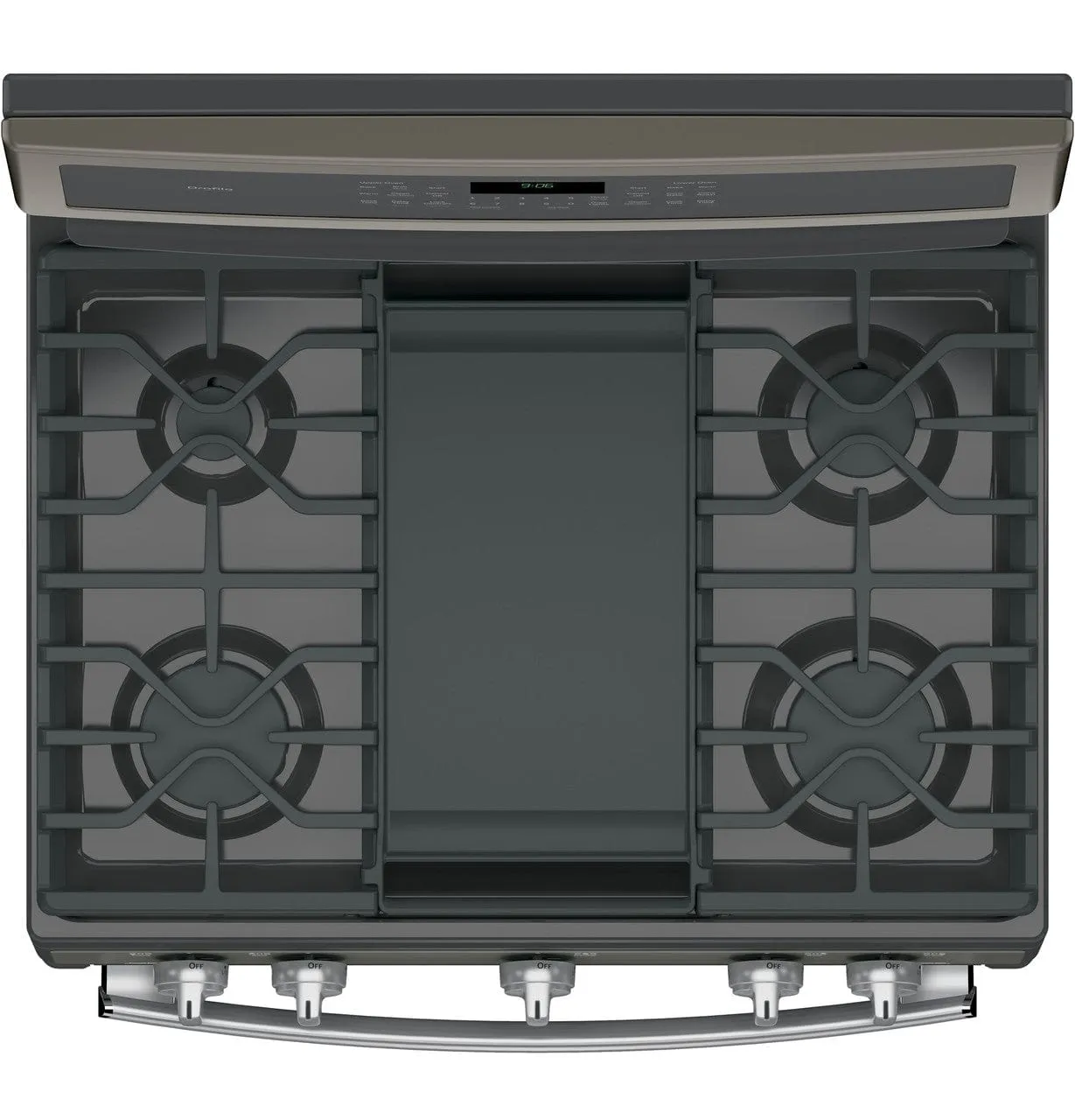

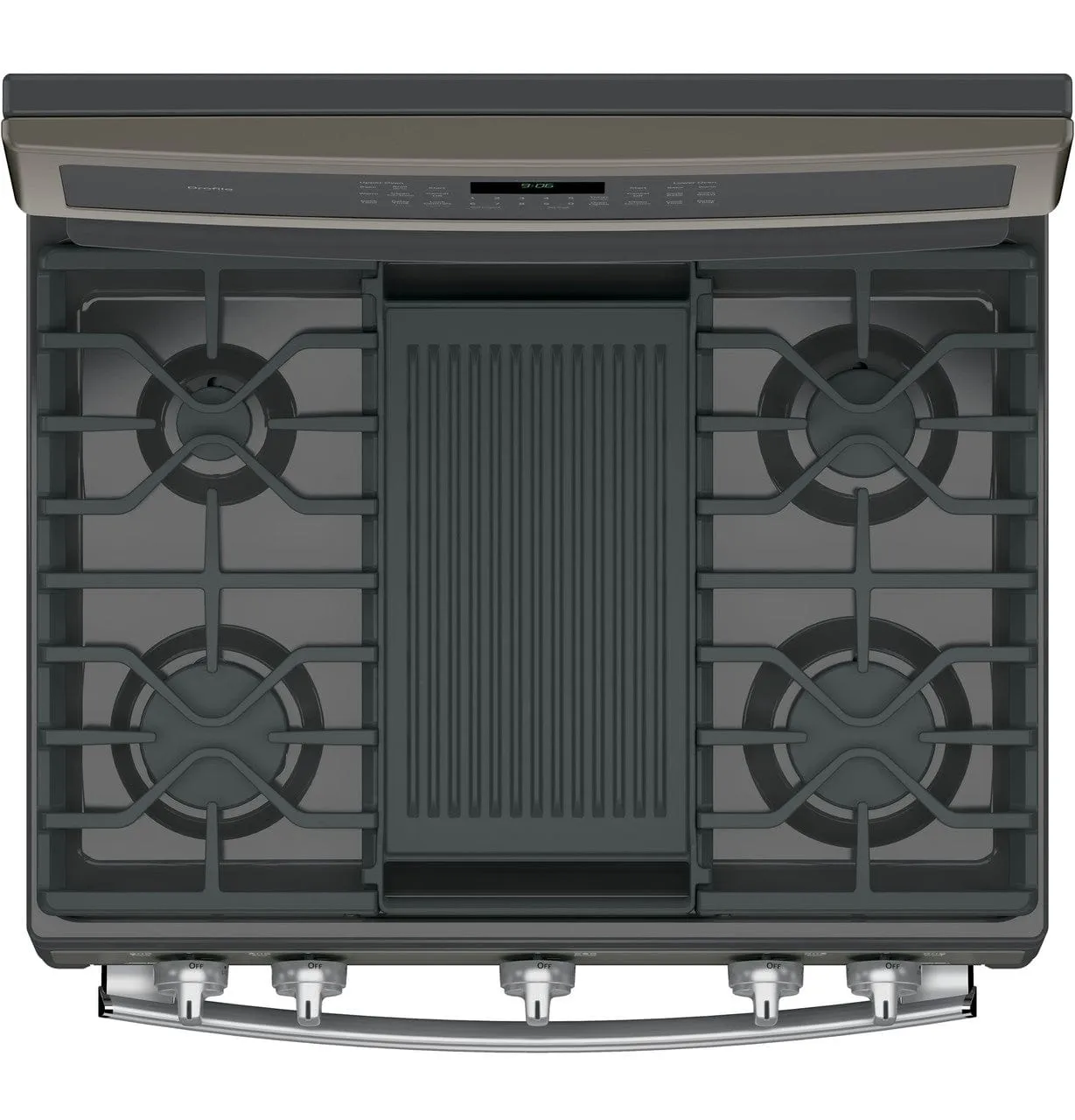

| Griddle Accessory | Reversible Integrated Grill/Griddle (Included) |
| LP Conversion Kit | Included |
APPEARANCE
| Color Appearance | Fingerprint Resistant Slate |
| Control Knobs | Stainless Steel Weighted |
| Cooktop Burner Grate Color | Matte Black |
| Handle Color | Stainless Steel |
| Handle Design | Designer Style |
| Oven Door Features | Big View Oven Window |
CAPACITY
| Capacity (Cu. Ft.) | 2.5 Upper / 4.3 Lower |
| Total Capacity (cubic feet) | 6.80 cu ft |
FEATURES
| Burner - Center | 10,000 BTU Dual Oval |
| Burner - Left Front | 18,000 BTU Power Boil |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Burner - Right Front | 18,000 BTU Power Boil |
| Burner - Right Rear | 9,500 BTU |
| Configuration | Double Oven Range |
| Control Location | Front |
| Control Type | Electronic Touch |
| Cooking Technology | Traditional Upper; Convection Lower |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Edge-to-Edge One-Piece Upswept Porcelain-Enamel Gray |
| Cooktop Type | Continuous Grates with Griddle |
| Fuel Type | Natural Gas |
| Griddle | Reversible Integrated Grill/Griddle (Included) |
| Ignition System | Electronic |
| Interior Oven Light | 1 Auto Incandescent (Both Ovens) |
| Oven Cleaning Type | Self-Clean with Steam Clean Option (Both Ovens) |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Certified Sabbath Mode Chef Connect Control Lock Capability |
| Oven Cooking Modes | Convection Bake Convection Roast Warming (Both Ovens) |
| Oven Rack Features | 3 Self-Clean Oven Racks |
| Oven Rack Positions (Single or Upper/Lower) | 2 / 5 |
| Product Type | Free-Standing Double Oven |
POWER / RATINGS
| Bake/Broiler BTU Rating - LP (000's BTU's) | 10.0 / 10.0 - Upper; 13.5 / 0.0 - Lower |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 12.0 / 10.0 - Upper; 14.0 / 0.0 - Lower |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 18.0; (1) 9.5; (1) 8.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (2) 18.0; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 225 lb |
| Cabinet Width | 30 in |
| Depth with Door Open | 44 in |
| Depth Without Handle | 27 3/4 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Net Weight | 205 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
| Overall Depth | 29 1/4 in |
| Overall Height | 47 1/4 in |
| Overall Width | 30 in |
